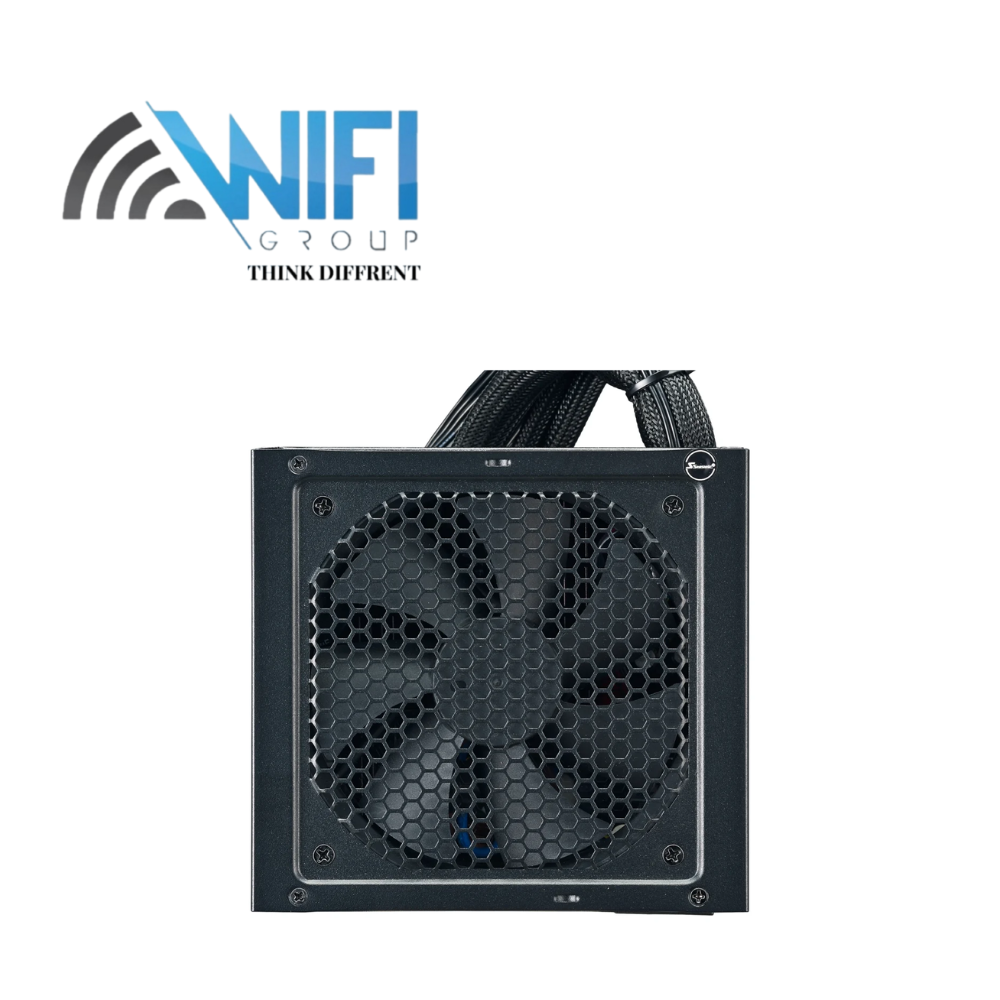

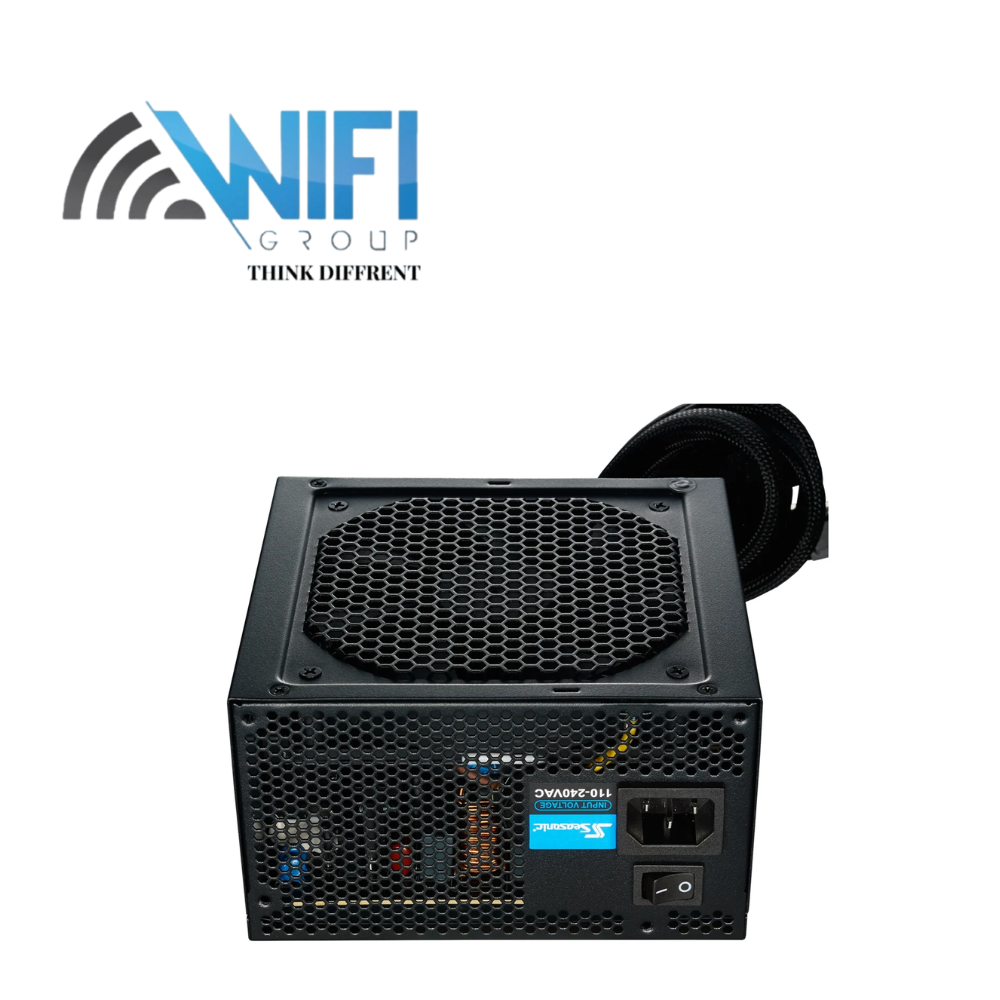

Seasonic S12III 550 SSR-550GB3 550W 80+ Bronze

80PLUS®

Bronze

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

ATX/EPS

Dimensions

140 × 150 × 86 mm

Fan Information

Fan Size

120 mm

Fan Control

S2FC

Fan Bearing

Sleeve Bearing

Life Expectancy

30,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

Modularity

Fixed Cables

Electrical Features

Operating Temperature

40 °C

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, Gost-R, UkrTEST, CB, BSMI, Semko, CCC, CE, FCC, C-tick

Environmental Compliance

Energy Star, RoHS, WEEE, REACH

Warranty

5 Years

AC Input

110 V - 240 V

8 - 4 A

50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

20 A

20 A

45.5 A

0.3 A

2.5 A

100 W

546 W

3.6 W

12.5 W

Total continuous power

550 W
