Brand

GIGABYTE

Series

GAMING OC

Model

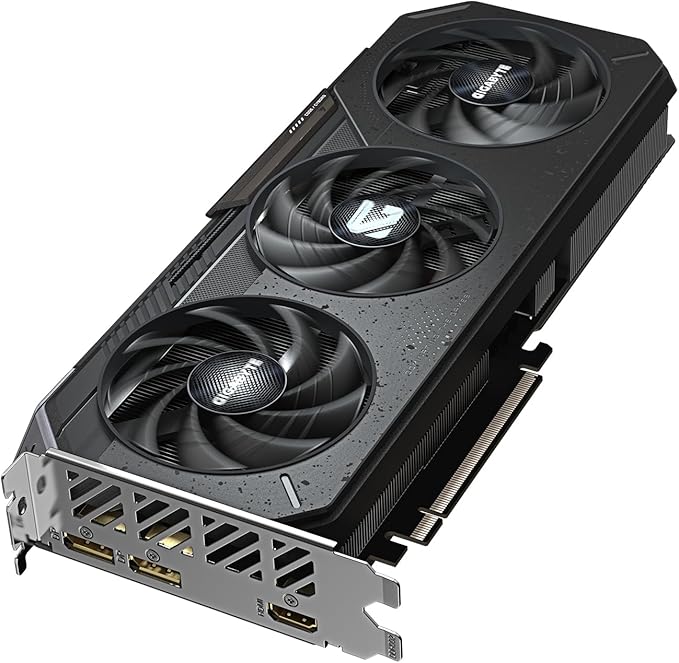

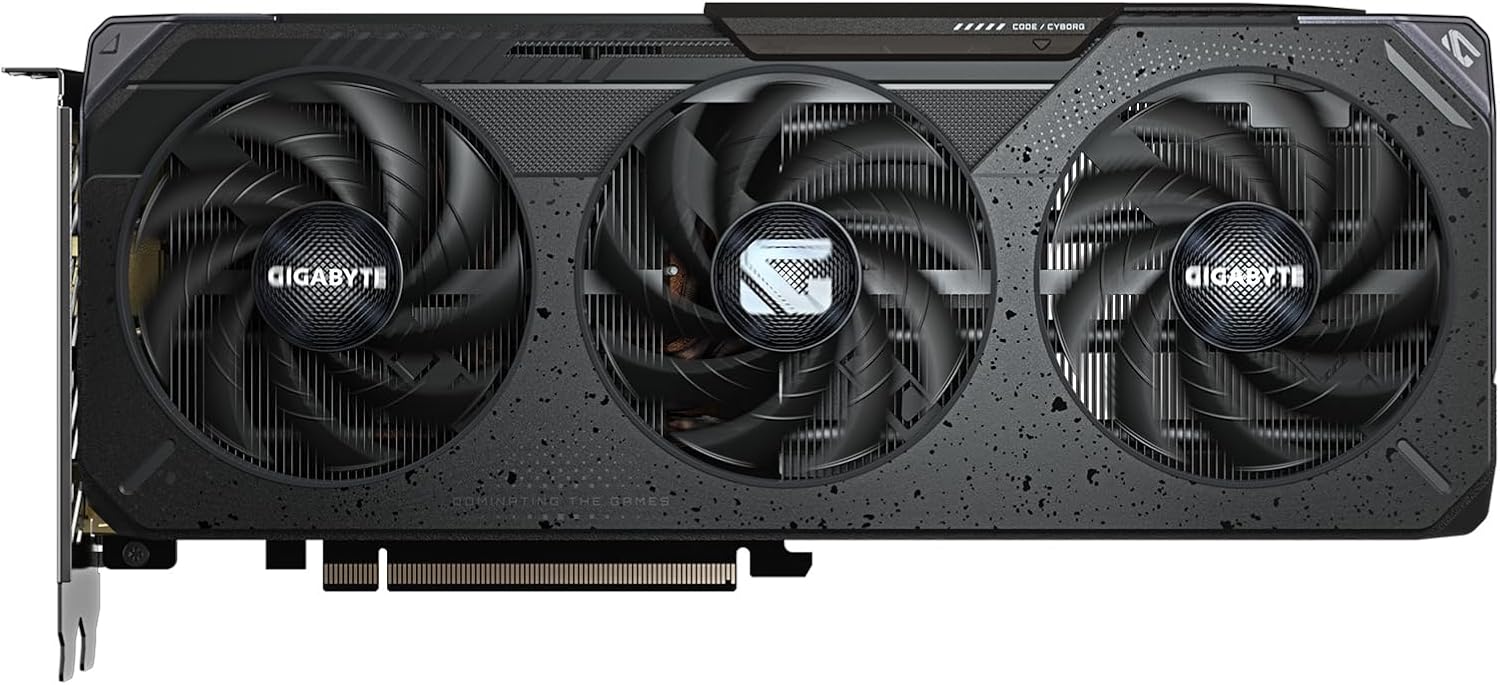

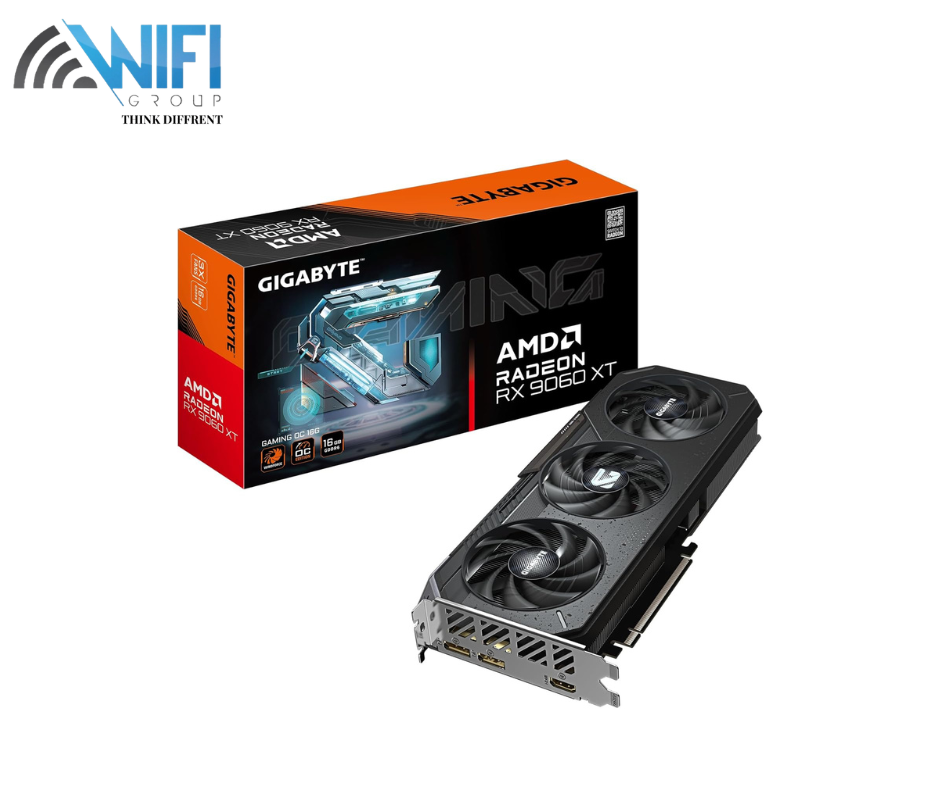

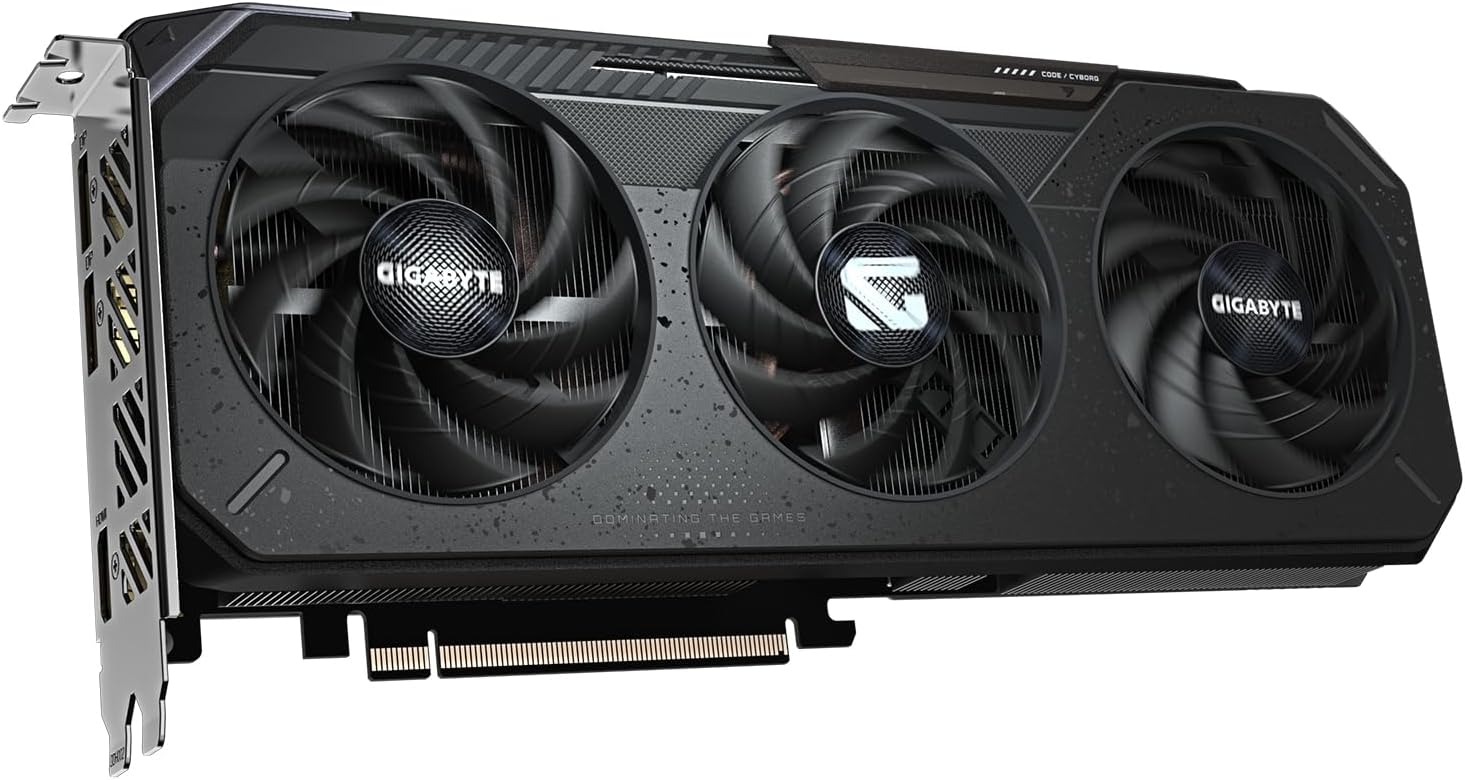

Radeon™ RX 9060 XT GAMING OC 16G

Part Number

GV-R9060XTGAMINGOC-16GD

Interface

PCI-E 5.0

Chipset Manufacturer

AMD

GPU

Radeon RX 9060 XT

Boost Clock

Up to 3320 MHz (Reference: 3130 MHz)

CUDA Cores

2048

Memory Speed

20 Gbps

Memory Size

16GB

Memory Interface

128-bit

Memory Type

GDDR6

Maximum Display Support

3

HDMI

1 x HDMI 2.1b

DisplayPort

2 x DisplayPort 2.1a

OpenGL

4.6

DirectX

12 API

Max Resolution

7680 x 4320

Cooler

WINDFORCE design

Recommended PSU

450W

Power Connector

1 x 8-pin

Max GPU Length

281 mm

Card Dimensions

L=281 x W=118 x H=40 mm

Slot Width

2-slot

Package Contents

VGA card, Quick guide

Features

WINDFORCE cooling system, metal backplate, RGB logo lighting

Warranty

3 Years
