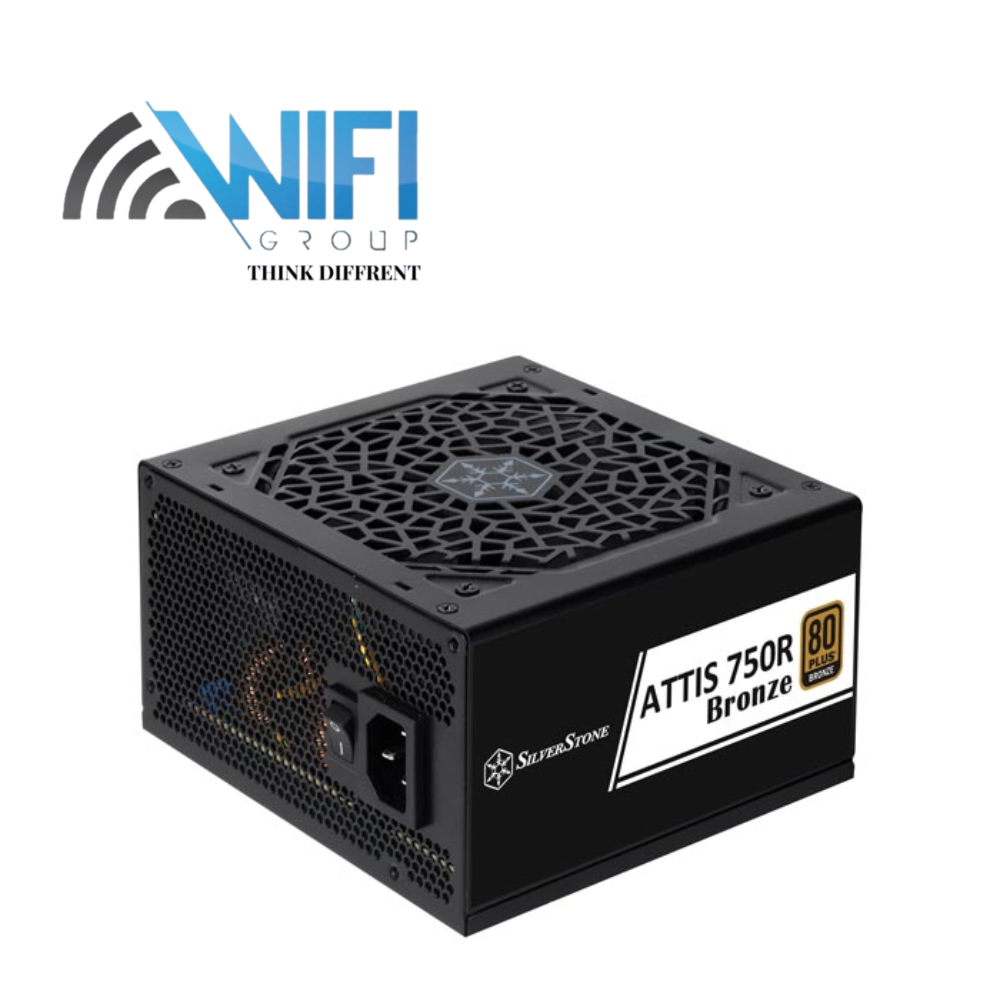

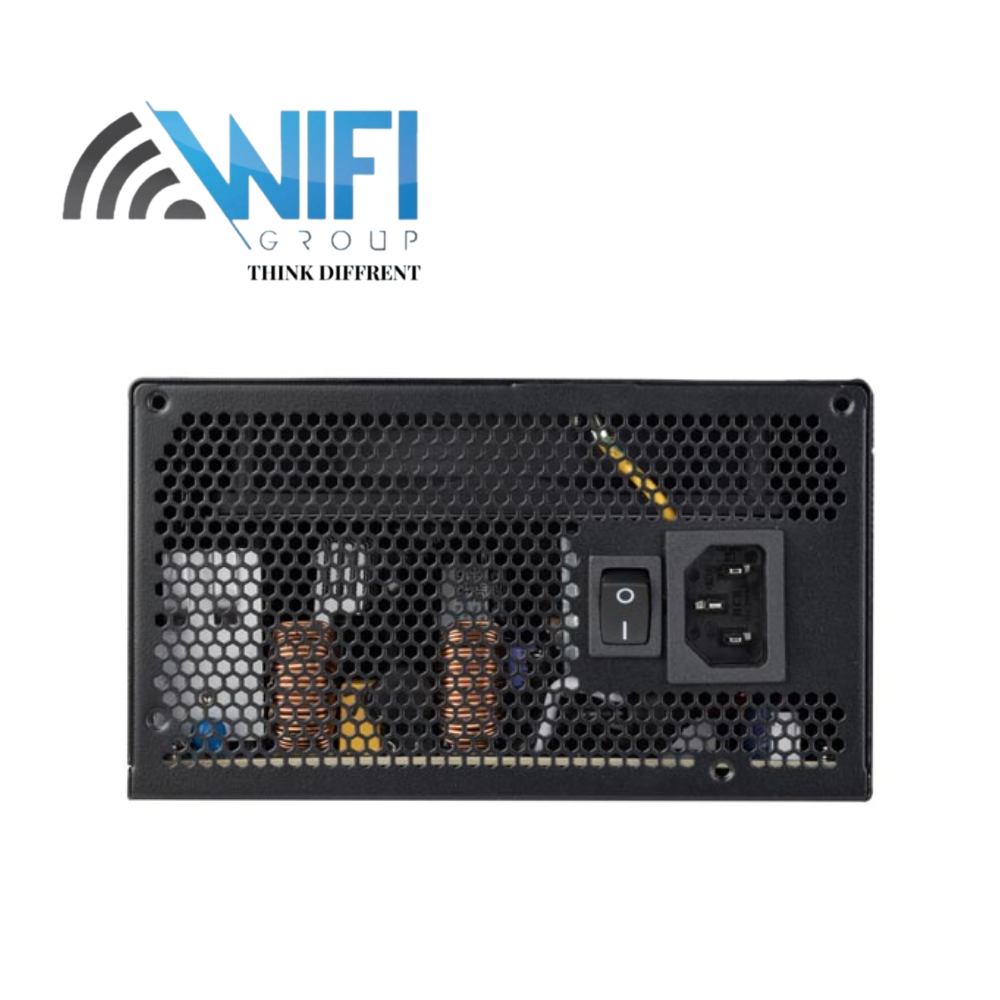

PSU SilverStone ATTIS 750R 750W 80 PLUS Bronze ATX 3.1
PSU SilverStone ATTIS 750R 750W 80 PLUS Bronze ATX 3.1
E£3199.00
Product No.
SST-AT750R-BF
Model (safety certification)
SST-AX0750FCBR-A
Color
Black (lead-free paint)
Max. DC Output
750W
Load Range
Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
Max.(Amps) | 20A | 20A | 62.5A | 3A | 0.3A |
Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
Range (%) | ±5% | ±5% | +5~-7% | ±5% | ±10% |
Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 50mV |
Combined +3.3V & +5V
100W
Combined +12V
750W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
82% ~ 85% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
4 x 8 / 6-Pin PCIe connector
6 x SATA connectors
3 x 4-Pin Peripheral connector
Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Certification
80 PLUS Bronze
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 140mm (D)
Weight
1.54 kg
