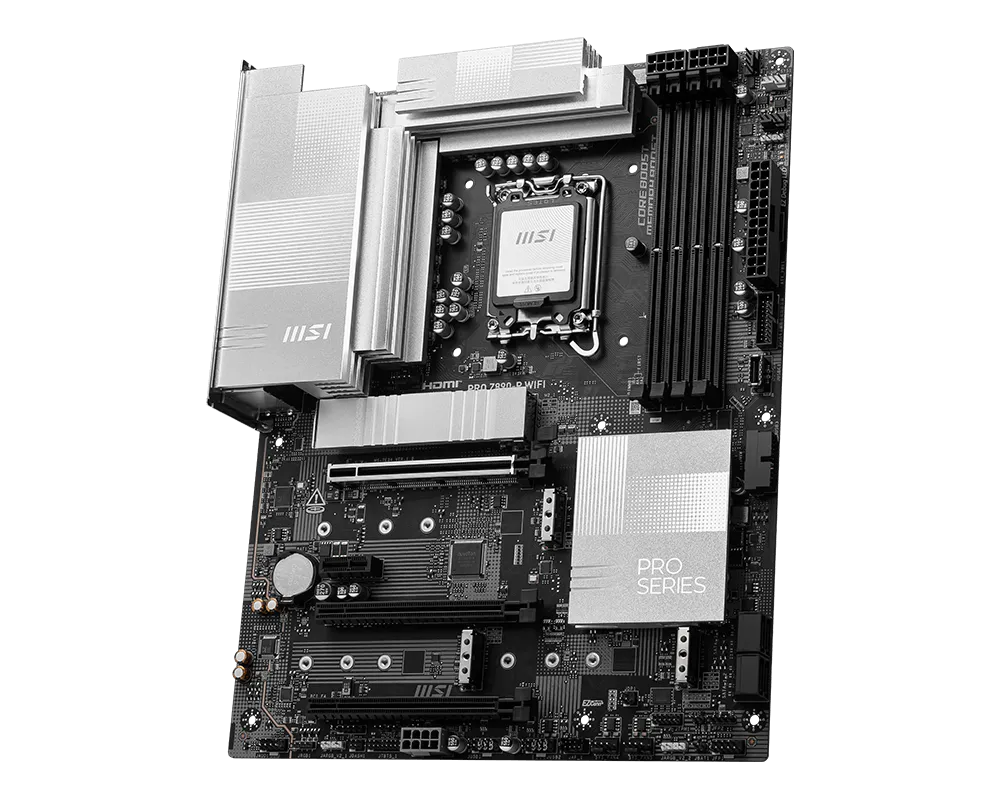

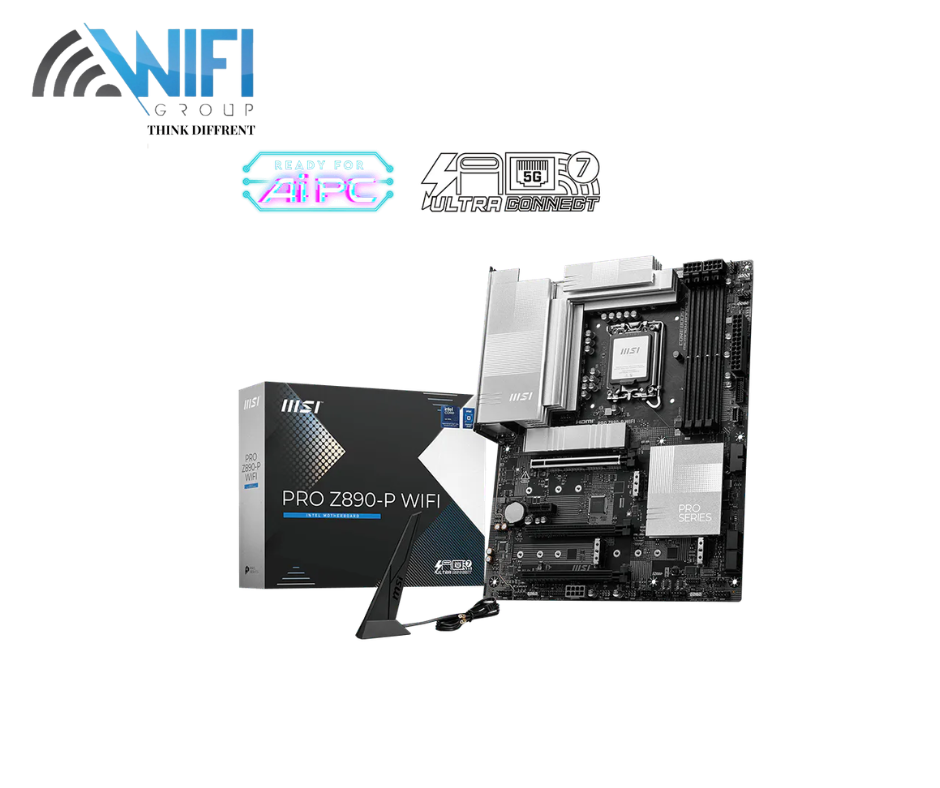

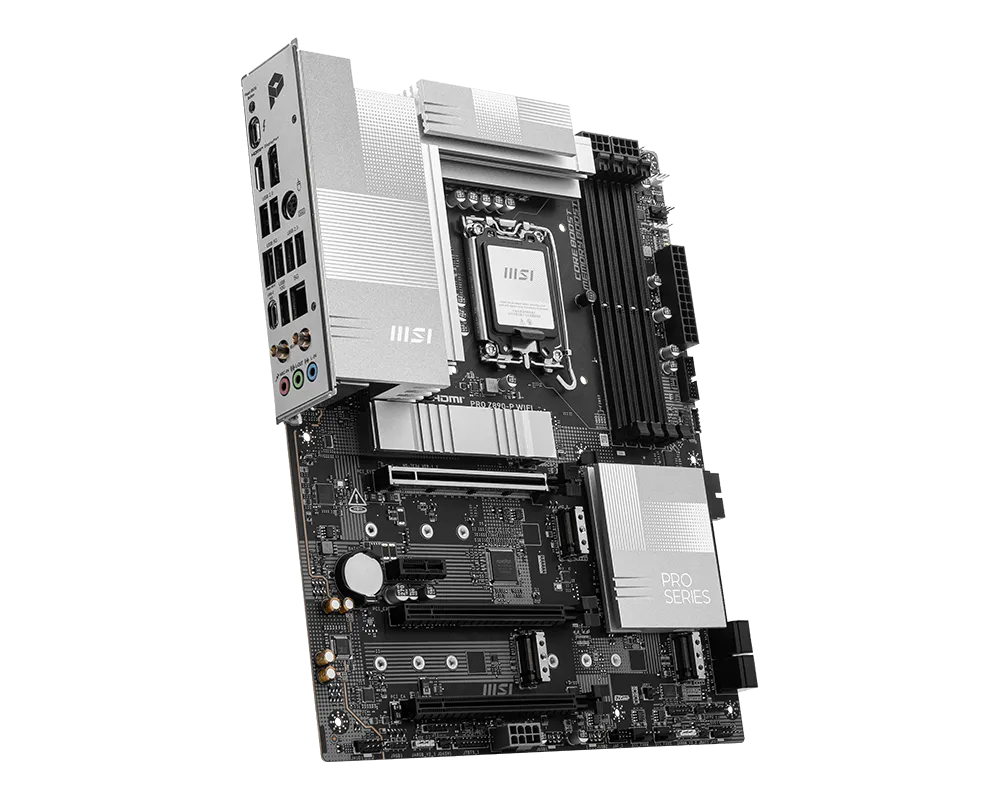

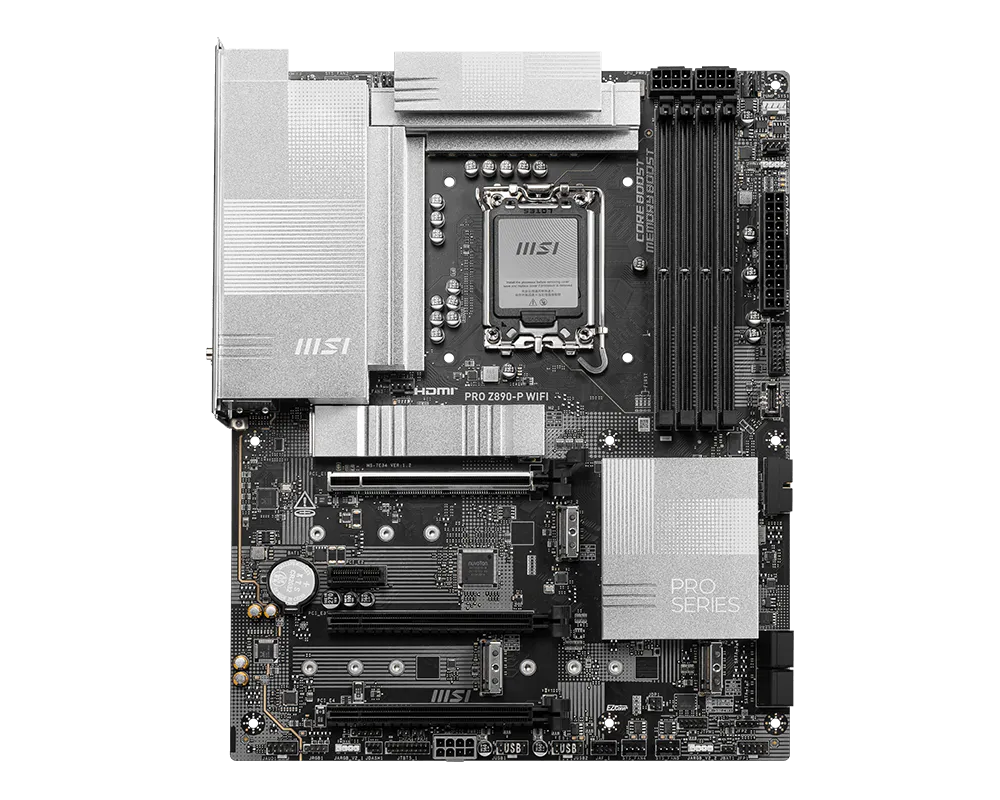

MSI PRO Z890-P WIFI LGA 1851 Intel
PRO Z890-P WIFI LGA
E£13799.00
Chipset
Chipset: INTEL Z890
CPU: Supports Intel® Core™ Ultra Processors (Series 2)
Socket: LGA 1851
Memory
Memory Slots: 4x DDR5 UDIMM
Maximum Memory Capacity: 256GB
Memory Support: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max Overclocking Frequency:
1DPC 1R: Max speed up to 9200+ MT/s
1DPC 2R: Max speed up to 7200+ MT/s
2DPC 1R: Max speed up to 4800+ MT/s
2DPC 2R: Max speed up to 4800+ MT/s
Supported Technologies:
Intel® POR Speed and JEDEC Speed
Memory Overclocking and Intel® XMP 3.0
Dual-Controller Dual-Channel mode
Non-ECC, Un-buffered memory
CUDIMM
Onboard Graphics
HDMI™: 1x HDMI™ 2.1, maximum resolution of 4K 60Hz*
DisplayPort: 1x DisplayPort 1.4, maximum resolution of 4K 60Hz*
Type-C DisplayPort: Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
\* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slots
PCI-E x16 Slots: 3x PCI-E x16
PCI-E x1 Slot: 1x PCI-E x1
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Codec: Realtek® ALC897 Codec
Channels: 7.1-Channel High Definition Audio
Storage
M.2 Slots: 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA Ports: 4x SATA 6G
\* Please refer to the manual for M.2 SSD heatsink restrictions.
PRO Z890-P WIFI
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
