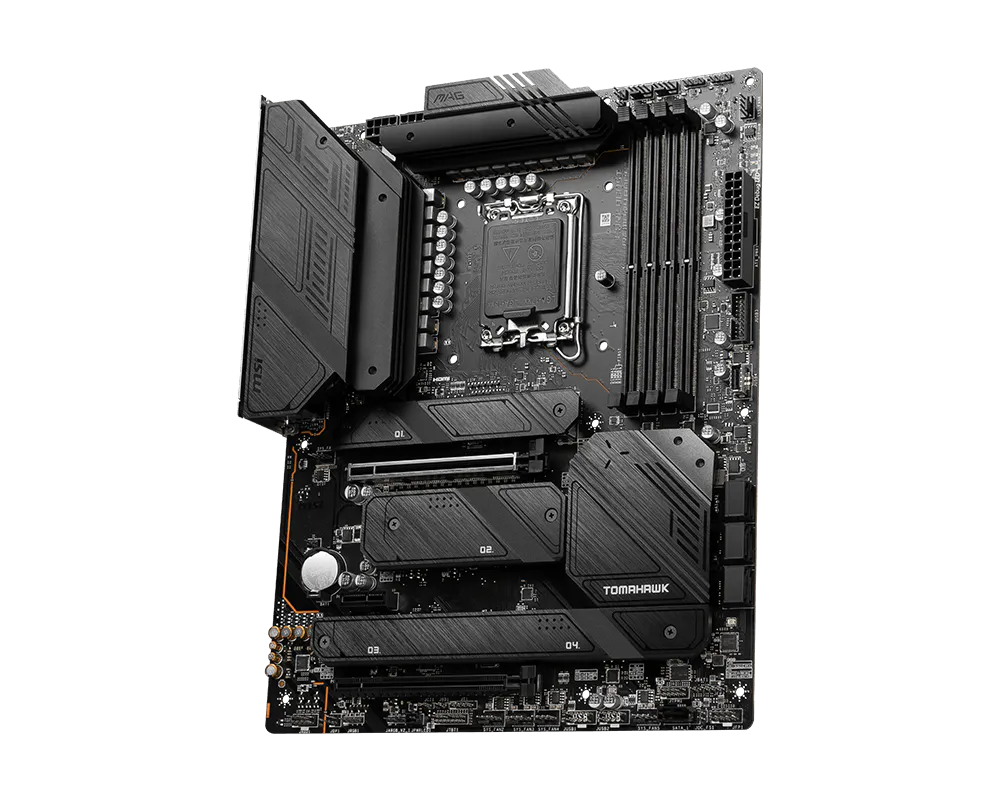

MSI MAG Z790 TOMAHAWK WiFi DDR5 Motherboard LGA 1700
MAG Z790 TOMAHAWK
E£17500.00
Chipset | Intel® Z790 |
CPU Support | Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors (LGA 1700) |
Power Design | 16+1+1 Mirrored Power Arrangement, Dual 8-pin CPU Power Connectors |
Memory Support | 4x DDR5, Max 192GB | Supports up to 7200+(OC) MHz | Intel® XMP 3.0 OC |
Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 3.0 x1 (Chipset) |
Onboard Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz) |
Storage (M.2) | 4x M.2 Slots (M.2_1 PCIe 4.0 x4 from CPU | Others from Chipset) |
Storage (SATA) | 7x SATA 6G Ports |
RAID Support | RAID 0, 1, 5, 10 (SATA & NVMe) |
USB (Rear) | 1x USB 3.2 Gen 2x2 (Type-C), 1x USB 3.2 Gen 2 (Type-C), 4x USB 3.2 Gen 2 (Type-A), 4x USB 3.2 Gen 1 (Type-A) |
USB (Front) | 1x USB 3.2 Gen 2 (Type-C), 2x USB 3.2 Gen 1 (Type-A), 4x USB 2.0 |
Ethernet (LAN) | Intel® 2.5Gbps LAN |
Wireless / BT | Intel® Wi-Fi 6E (2.4/5/6GHz up to 2.4Gbps) + Bluetooth 5.3 |
Audio | Realtek® ALC4080 Codec | 7.1-Channel USB High Performance Audio | S/PDIF Out |
Internal Headers | 1x Pump Fan, 6x System Fans, 3x ARGB V2, 1x RGB, TPM 2.0 Header |

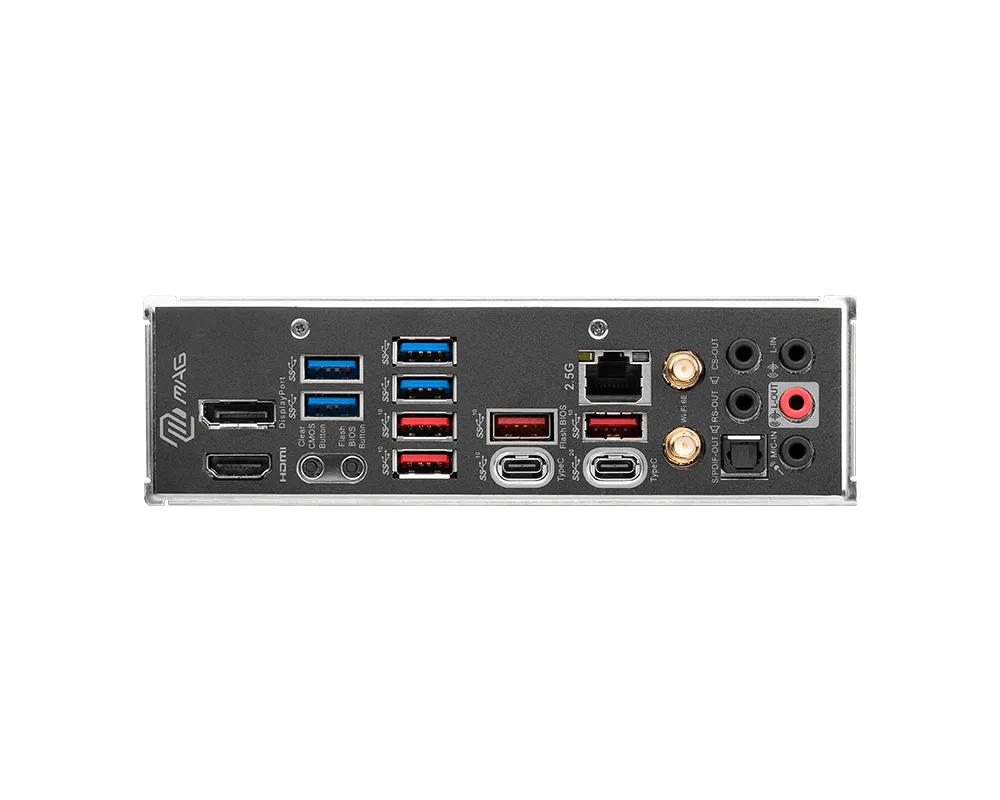

Back Panel Features | Clear CMOS Button, Flash BIOS Button, Wi-Fi/BT Antenna, Optical S/PDIF |
PCB Quality | 6-layer PCB, 2oz Thickened Copper, Server Grade Material |
Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | ATX (243.84mm x 304.8mm) |
MAG Z790 TOMAHAWK WIFI
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7200+(OC) MHz
Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
