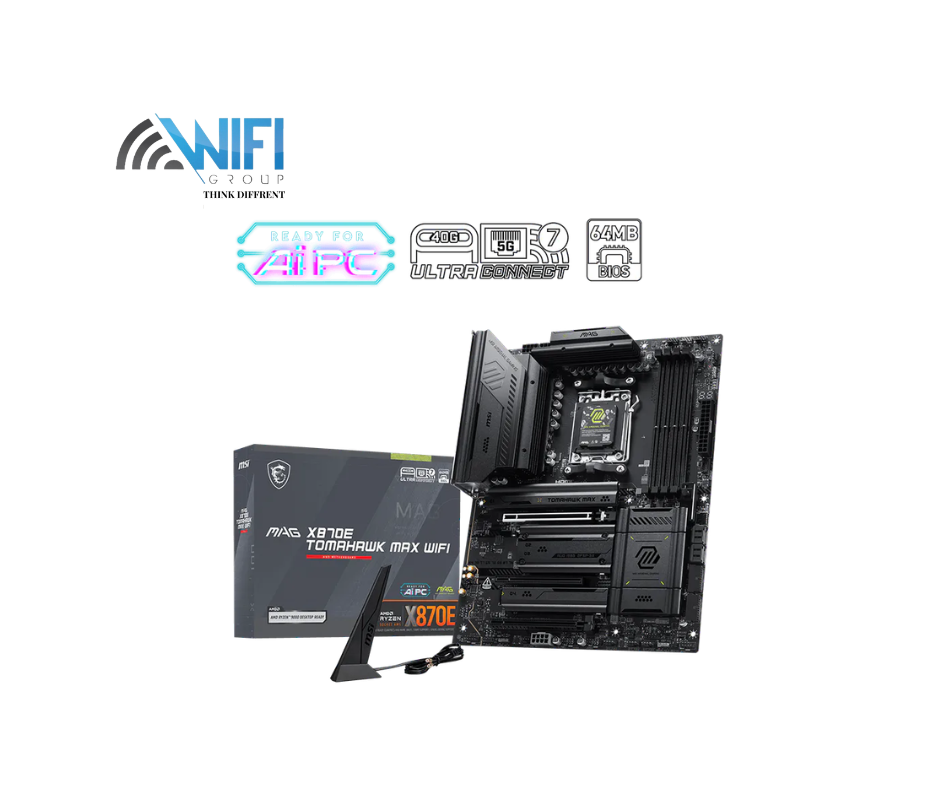

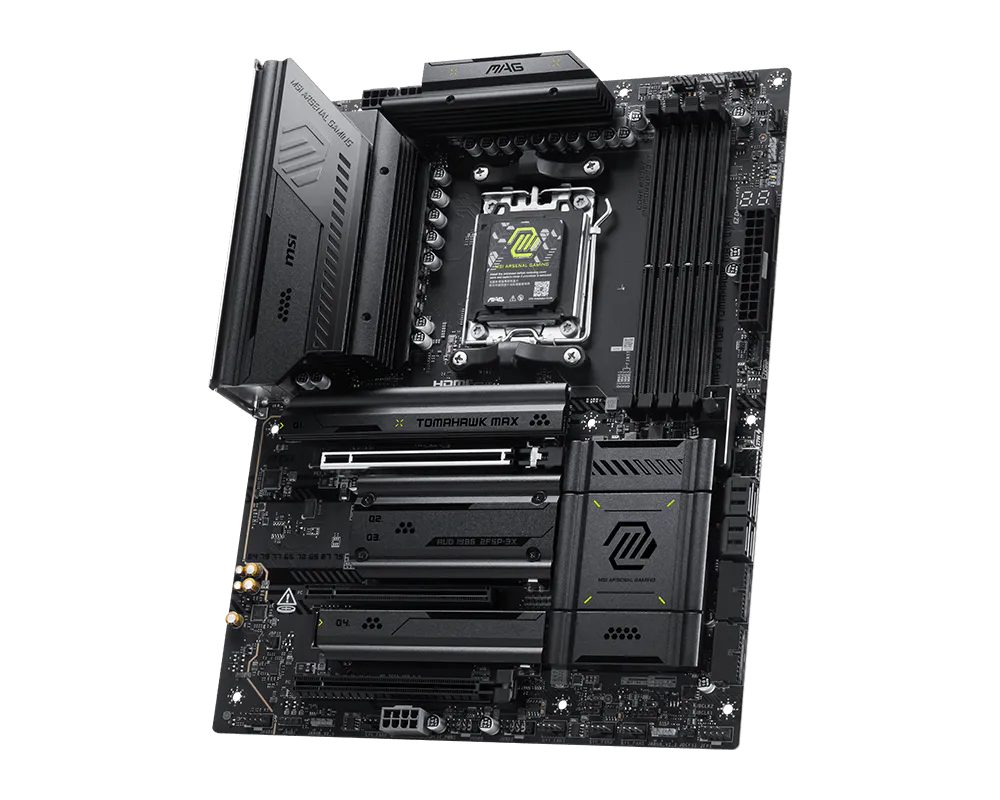

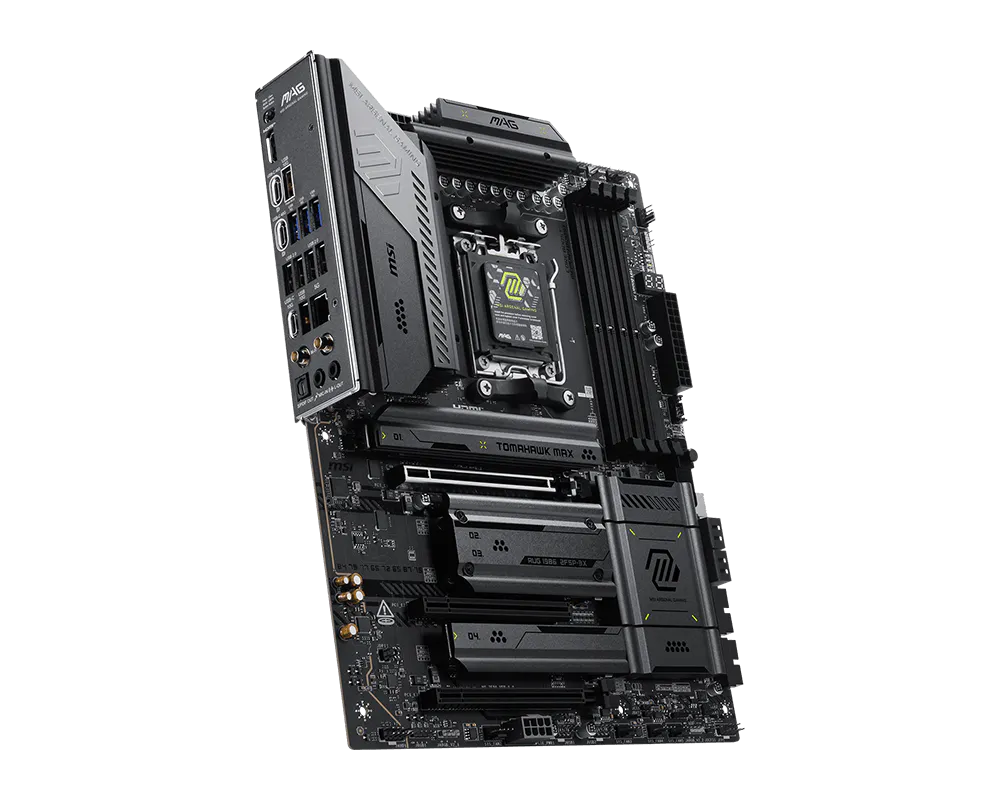

MSI MAG X870E TOMAHAWK MAX WIFI AM5 Motherboard
MAG X870E TOMAHAWK
E£17999.00
CPU Support
AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
Chipset
AMD X870E
DIMM Slots
4x DDR5 UDIMM
Max Memory support
256GB
PCI-E Slots
3x PCI-E x16 Slots
M.2 Slots
4x M.2
SATA III
4x SATA 6G
ARGB Headers
3x Addressable V2 RGB LED Connector
RGB Headers
1x RGB LED Connector
Fan Headers
1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan
Front Type C Headers
1x USB 20Gbps Type-C (Front)
Front USB 3 Headers
4x USB 5Gbps Type-A (Front)
USB 2.0 Headers
4x USB 2.0 (Front)
Flash BIOS Buttons
1x Flash BIOS Button
Clear COMS Buttons
1x Clear CMOS Button
Onboard Graphics Outputs
1x HDMI, 2x USB Type-C DisplayPort

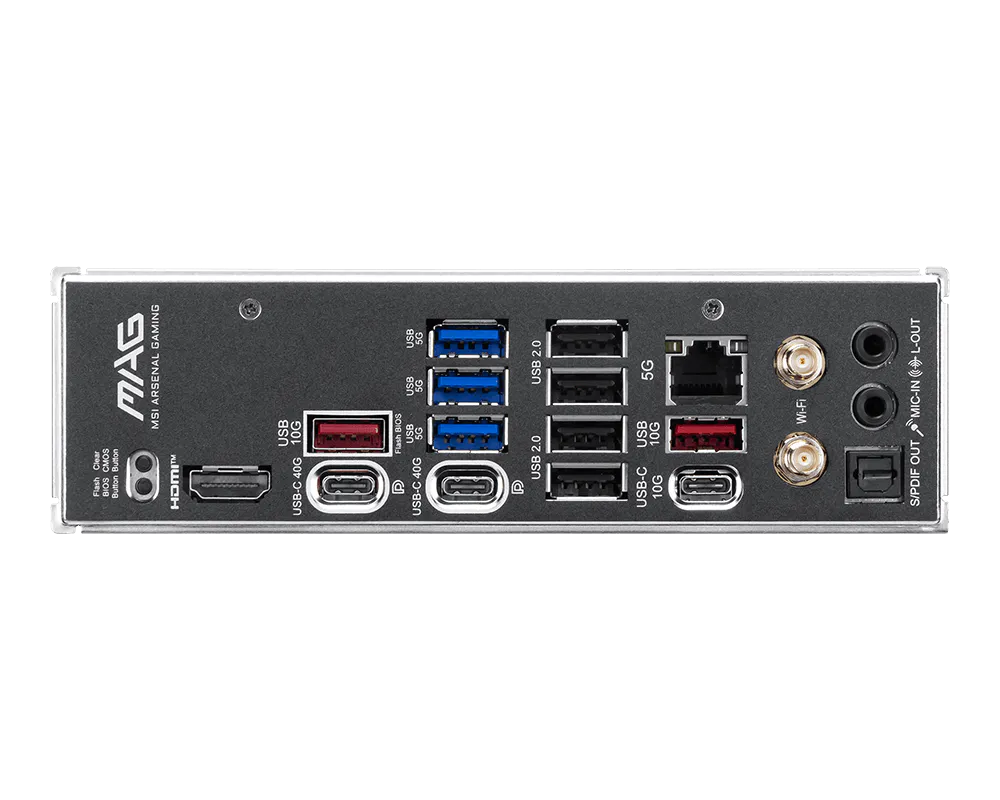

USB Ports
4x USB 2.0, 3x USB 5Gbps Type-A, 2x USB 10Gbps Type-A
USB Type C Ports
1x USB 10Gbps Type-C, 2x USB 40Gbps Type-C
Ethernet LAN Port
1x Realtek 8126 5G LAN
Bluetoooht & Wireless
Wi-Fi 7, Bluetooth 5.4
Audio Jacks
Audio Connectors
Optical
S/PDIF Output
Operating System
Windows 11 64-bit
MAG X870E TOMAHAWK MAX WIFI
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II are built for high high-performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
