MSI MAG B860M MORTAR WIFI Intel DDR5
MSI MAG B860M MORTAR WIFI Intel DDR5
E£11350.00
Model
MSI MAG B860M MORTAR WIFI
CPU Support
Intel® Core™ Ultra Processors (Series 2), LGA 1851
Chipset
Intel B860
DIMM Slots
4x DDR5 UDIMM
Max Memory support
Up to 256GB DDR5, 9200+ MT/s (OC)
PCI-E Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x4
M.2 Slots
3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4)
SATA III
4x SATA 6Gb/s
ARGB Headers
3x Addressable Gen2
RGB Headers
1x RGB Header
Fan Headers
1x CPU Fan, 1x Pump/Combo, 4x System Fan
Front Type C Headers
1x USB 10Gbps Type-C
Front USB 3 Headers
2x USB 5Gbps Type-A
USB 2.0 Headers
4x USB 2.0
Flash BIOS Buttons
Yes
Clear COMS Buttons
Yes
Onboard Graphics Outputs
1x HDMI 2.1, 1x DisplayPort 1.4, 1x Type-C (DP 2.1 / TB4)

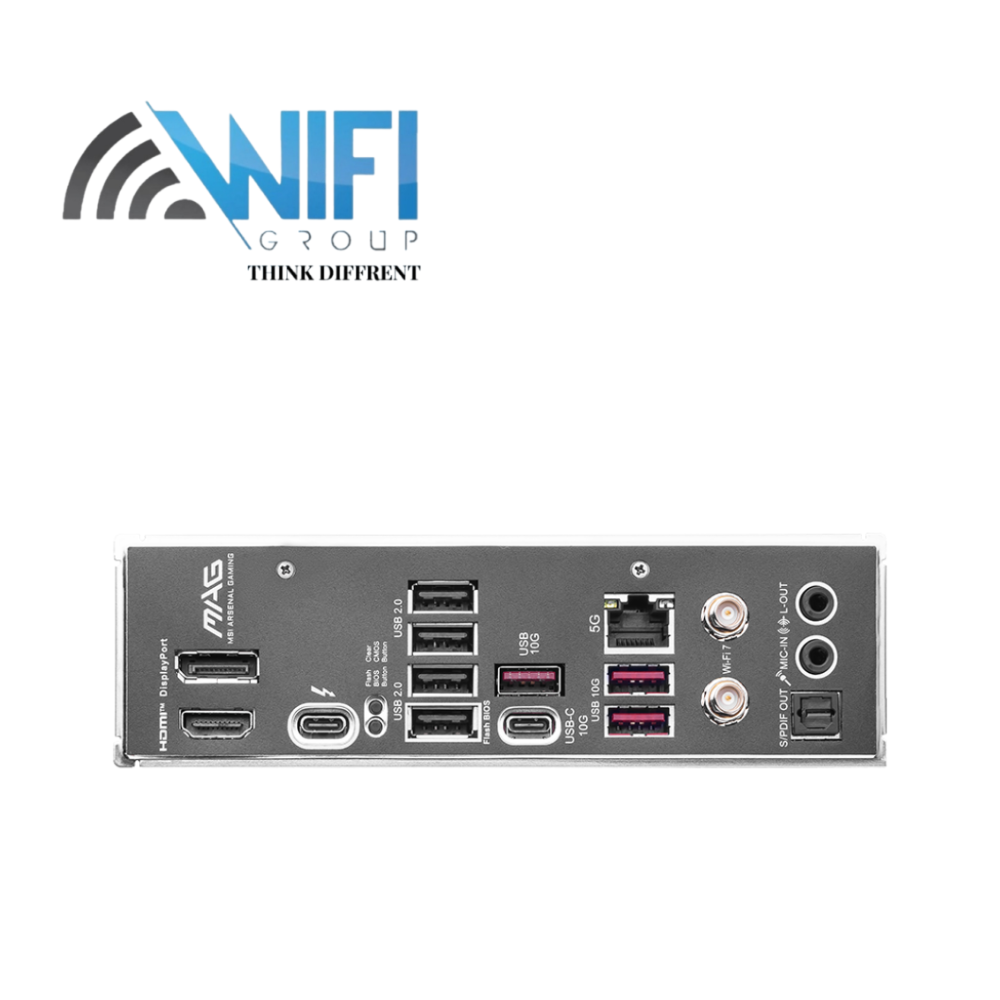

USB Ports
4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
USB Type C Ports
1x Rear (TB4 40Gbps), 1x Rear 10Gbps, 1x Front 10Gbps
Ethernet LAN Port
Intel Killer E5000 5Gbps LAN
Bluetoooht & Wireless
Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4
Audio Jacks
3x Audio Jacks (Rear)
Optical
1x S/PDIF Out
Operating System
Windows® 11 64-bit
Form Factor
mATX (243.84mm x 243.84mm)
