Brand

MSI

Series

SHADOW 2X OC PLUS

Model

GeForce RTX 5060 Ti 16G

Part Number

G506T-16S2CP

Interface

PCI Express Gen 5 x16 (uses x8)

Chipset Manufacturer

NVIDIA

GPU

GeForce RTX 5060 Ti

Boost Clock

2602 MHz (Extreme Performance: 2617 MHz with MSI Center)

CUDA Cores

4608

Memory Speed

28 Gbps

Memory Size

128-bit

Memory Interface

16GB

Memory Type

GDDR7

Maximum Display Support

4

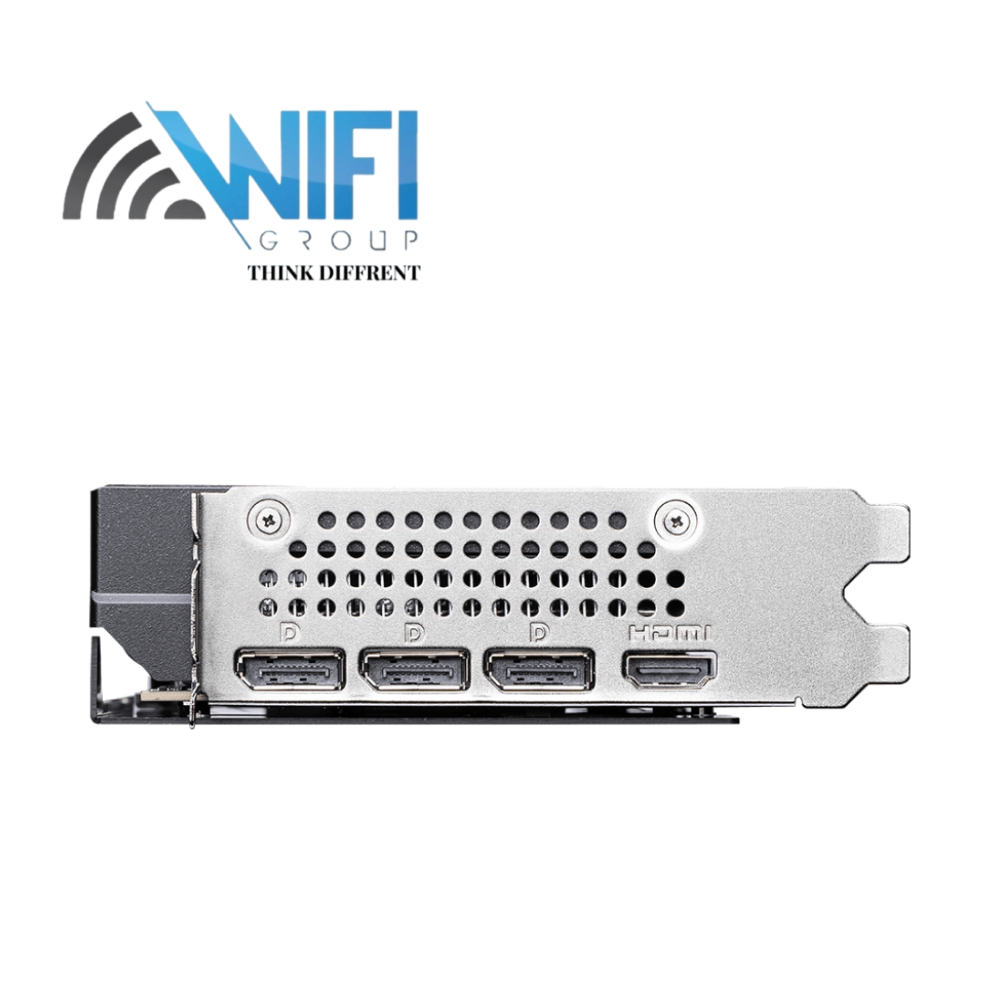

HDMI

1 x HDMI 2.1b (up to 4K 480Hz / 8K 120Hz with DSC, VRR, HDR)

DisplayPort

3 x DisplayPort 2.1b

OpenGL

4.6

DirectX

12 Ultimate

Max Resolution

7680 x 4320

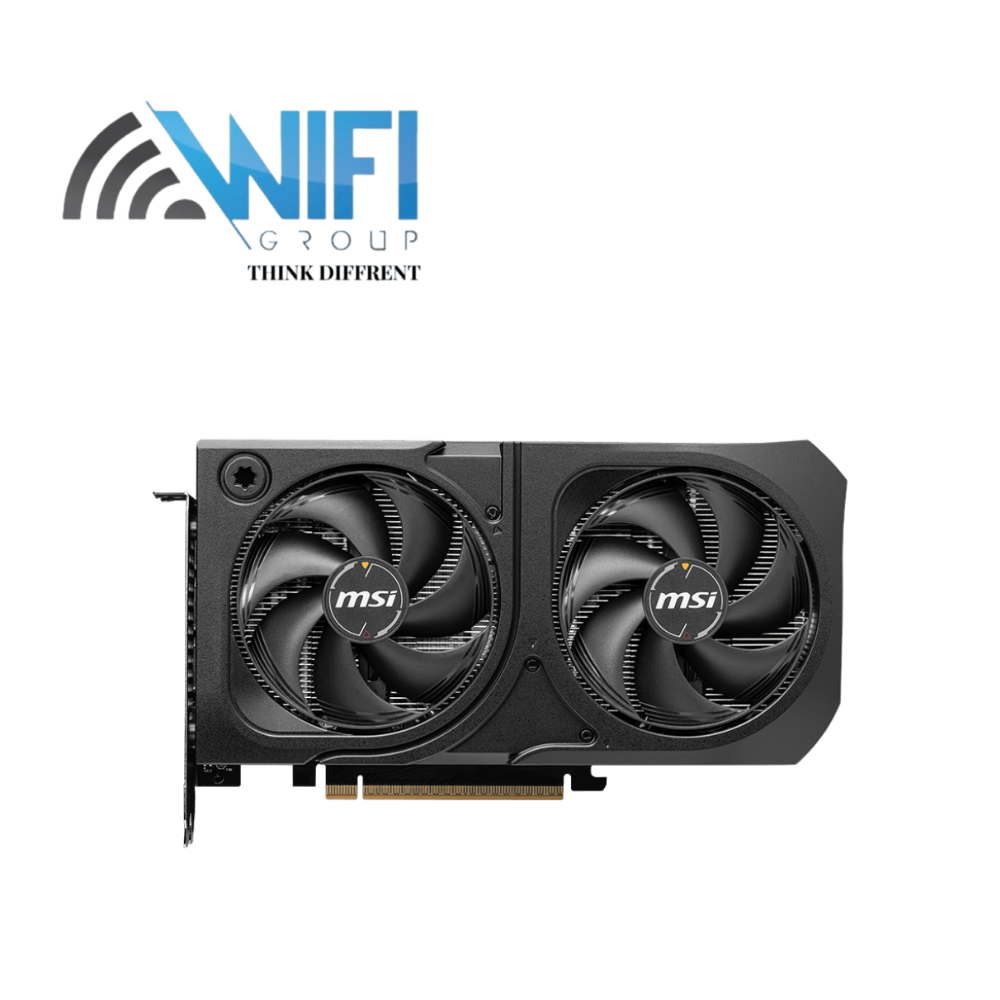

Cooler

Dual-fan (STORMFORCE design with 7 blades & claw texturing), heat pipes, metal backplate with vents

Recommended PSU

600 W

Power Connector

1 x 8-pin

Max GPU Length

226 mm

Card Dimensions

226 x 126 x 41 mm

Slot Width

Dual-slot

Package Contents

Graphics Card, User Manual

Features

NVIDIA Blackwell architecture, DLSS 4, G-SYNC support, Metal Backplate, MSI Center, Afterburner software

Warranty

3 Years
