Model

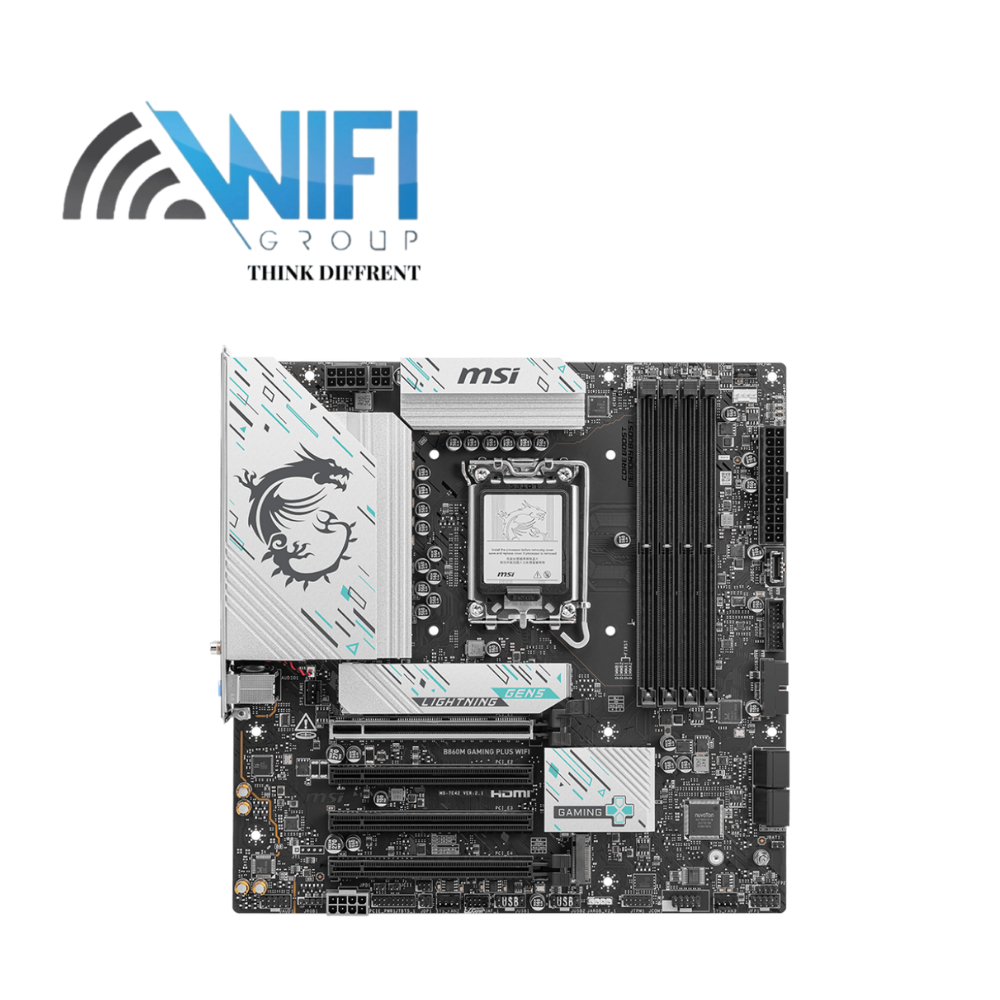

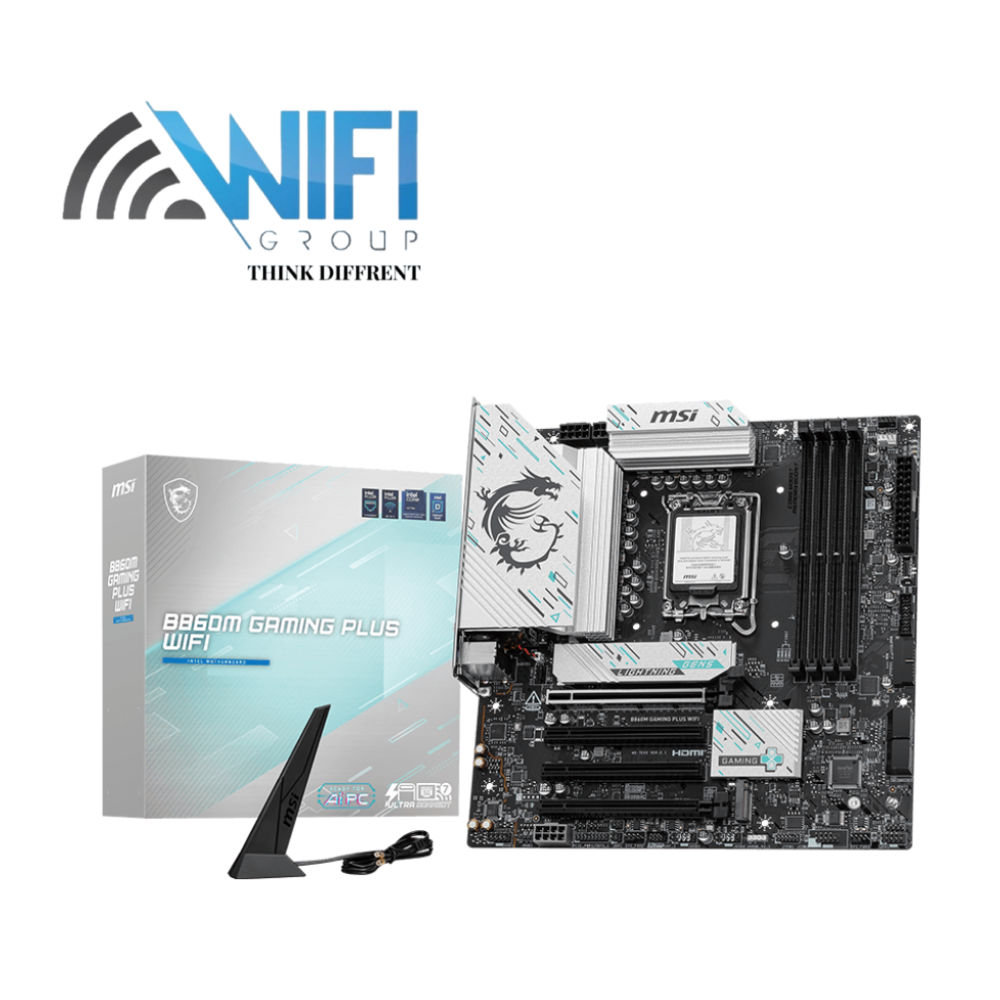

MSI B860M GAMING PLUS WIFI

CPU Support

Intel® Core™ Ultra Processors (Series 2) for LGA1851

Chipset

Intel B860

DIMM Slots

4x DDR5 UDIMM

Max Memory support

256GB, up to 8800+ MT/s (OC)

PCI-E Slots

4 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 4.0 x1)

M.2 Slots

3 (1x Gen5 x4, 2x Gen4)

SATA III

4x 6Gb/s

ARGB Headers

2x JARGB_V2

RGB Headers

1x JRGB

Fan Headers

1x CPU Fan, 1x Pump/Combo Fan, 3x System Fan

Front Type C Headers

1x USB 10Gbps Type-C

Front USB 3 Headers

4x USB 5Gbps Type-A

USB 2.0 Headers

4

Flash BIOS Buttons

No

Clear COMS Buttons

1 (Rear)

Onboard Graphics Outputs

1x HDMI 2.1, 1x DisplayPort 1.4, 1x Type-C (DP 2.1 via Thunderbolt 4)

PS/2 Combo Ports

No

USB Ports

2x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 10Gbps Type-A (Rear)

USB Type C Ports

1x Rear Thunderbolt 4 (40Gbps), 1x Rear USB 5Gbps, 1x Front USB 10Gbps

Ethernet LAN Port

Intel® Killer™ E5000 5Gbps LAN

Bluetoooht & Wireless

Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4

Audio Jacks

3x Rear Audio Jacks

Optical

No

Operating System

Windows 11 64-bit

Form Factor

mATX (243.84mm x 243.84mm)
