Model

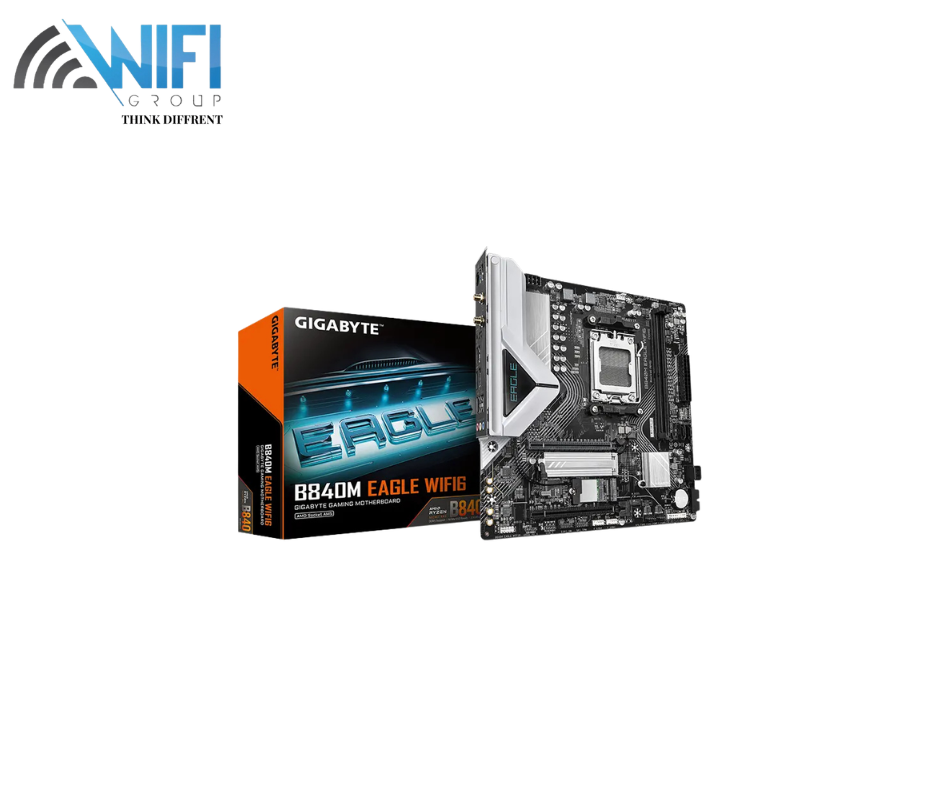

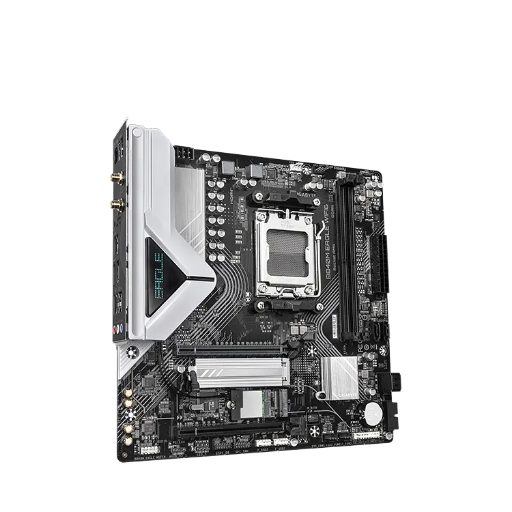

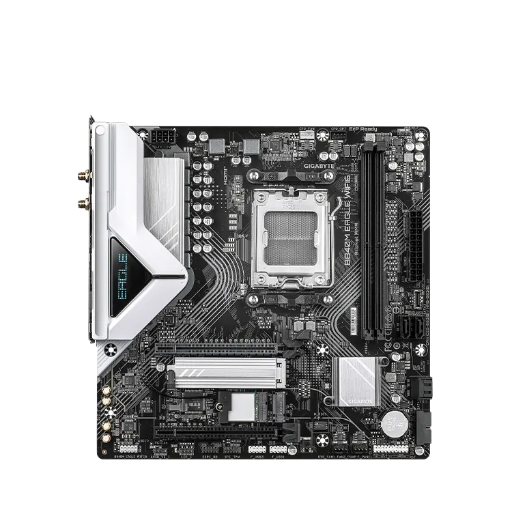

B840M EAGLE WIFI6

CPU Support

AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)

Chipset

AMD B840

DIMM Slots

2 x DDR5 DIMM sockets

Max Memory support

Up to 128GB DDR5 7600(O.C.)

PCI-E Slots

1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4

M.2 Slots

2 x M.2 (1 x PCIe 4.0 x4/x2, 1 x PCIe 3.0 x2)

SATA III

4 x SATA 6Gb/s ports

ARGB Headers

2 x Addressable RGB Gen2 headers

RGB Headers

1 x RGB LED header

Fan Headers

4 (CPU, CPU/WP, SYS, SYS/WP)

Front Type C Headers

1 x USB 3.2 Gen1 Type-C

Front USB 3 Headers

1 x USB 3.2 Gen1 header (2 ports)

USB 2.0 Headers

2 x USB 2.0 headers (4 ports)

Flash BIOS Buttons

Yes (Q-Flash Plus button)

Clear COMS Buttons

Via jumper

Onboard Graphics Outputs

1 x HDMI 2.1, 1 x DisplayPort 1.4

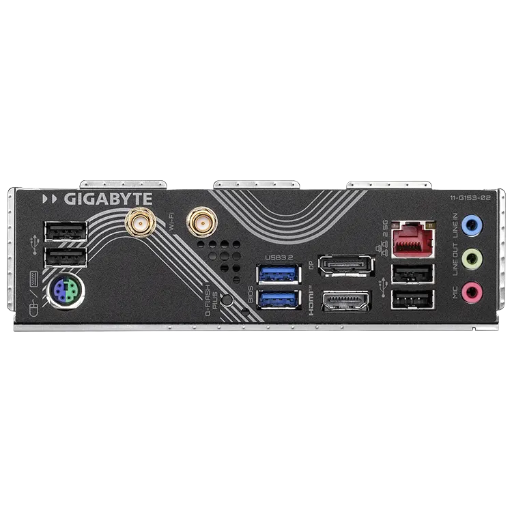

PS/2 Combo Ports

1

USB Ports

4 x USB 2.0, 2 x USB 3.2 Gen1 (rear)

USB Type C Ports

1 x Internal (Front USB 3.2 Gen1 Type-C)

Ethernet LAN Port

Realtek 2.5GbE LAN

Bluetoooht & Wireless

Wi-Fi 6 RTL8851BE + Bluetooth 5.3

Audio Jacks

3 x 3.5mm audio jacks (7.1 HD Audio)

Optical

No

Operating System

Windows 10/11 64-bit

Form Factor

Micro ATX (24.4cm x 24.4cm)
