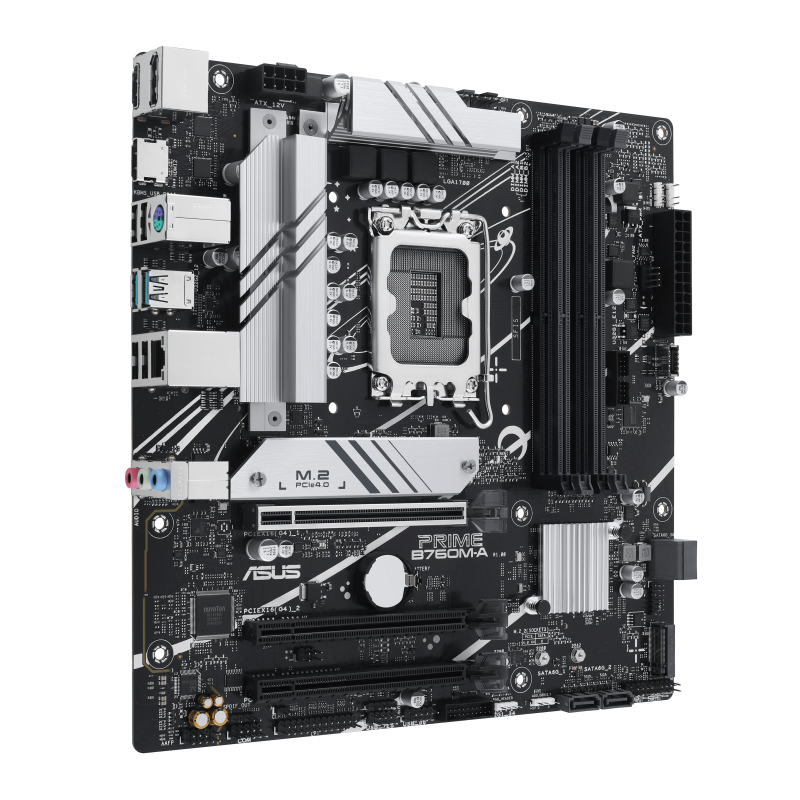

ASUS PRIME B760M-A-CSM Intel DDR5

CPU

• Socket: Intel® LGA1700

• Supported CPUs:

  • Intel® Core™ 14th & 13th Gen Processors

  • Intel® Core™ 12th Gen

  • Pentium® Gold

  • Celeron® Processors*
    (Refer to www.asus.comfor CPU support list.)
    (Intel® Turbo Boost Max Technology 3.0 support depends on CPU types.)

Chipset

• Model: Intel® B760

Memory

• Slots: 4 x DIMM

• Max Capacity: 128GB

• Memory Types: DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz

• Non-ECC, Un-buffered Memory: Yes

• On-Die ECC Function: Yes

• Architecture: Dual Channel

• Memory Profiles:

  • Intel® Extreme Memory Profile (XMP)

  • OptiMem II

Graphics

• Display Outputs:

  • 1 x DisplayPort: Supports max. 4K@60Hz (DisplayPort 1.4)

  • 2 x HDMI ports: Supports max. 4K@60Hz (HDMI 2.1)

Expansion Slots

• PCIe 4.0 x16 Slots:

  • 1 x x16 mode

  • 1 x x4 mode

  • 1 x x1 mode
    (Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/for the list of supported peripherals.)

Storage

• Total Slots:

  • 2 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports*
    (Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.)

• M.2 Slots:

  • M.2_1 slot: Type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • M.2_2 slot: Type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Ethernet

• Network Adapter: 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 6 ports):

  • USB 3.2 Gen 2: 2 x Type-A

  • USB 2.0: 4 x Type-A

• Front USB (Total 10 ports):

  • USB 3.2 Gen 1 Headers: 2 x headers (supports 4 additional USB 3.2 Gen 1 ports)

  • USB 3.2 Gen 1 Connector: 1 x Type-C

  • USB 2.0 Headers:

    • 2 x headers (supports 4 additional USB 2.0 ports)

    • 1 x header (supports 1 additional USB 2.0 port)

Audio

• Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC*
  (A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.)

• Features:

  • Jack-detection

  • Multi-streaming

  • Front Panel Jack-retasking

  • Playback up to 24-Bit/192 kHz

Graphics Shielding

• Audio Shielding: Yes

• Premium Audio Capacitors: Yes

• Dedicated Audio Layers: Yes

Back Panel I/O Ports

• USB 3.2 Gen 2: 2 x Type-A

• USB 2.0: 4 x Type-A

• DisplayPort: 1 x

• HDMI: 2 x

• Wi-Fi Module: 1 x

• Realtek 2.5Gb Ethernet Port: 1 x

• Audio Jacks: 3 x

• PS/2 Combo Port: 1 x

Internal I/O Connectors

• Fan & Cooling:

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 2 x 4-pin Chassis Fan headers

• Power:

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

• Storage:

  • 2 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

• USB:

  • 2 x USB 3.2 Gen 1 headers (supports 4 additional USB 3.2 Gen 1 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

  • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)

  • 1 x USB 2.0 header (supports 1 additional USB 2.0 port)

Miscellaneous Connectors

• Addressable Gen 2 Headers: 3 x

• Aura RGB Header: 1 x

• Clear CMOS Header: 1 x

• COM Port Header: 1 x

• Front Panel Audio Header (AAFP): 1 x

• LPT Header: 1 x

• S/PDIF Out Header: 1 x

• SPI TPM Header (14-1pin): 1 x

• System Panel Header with Chassis Intrude Function: 1 x

Special Features

• ASUS 5X Protection III:

  • DIGI+ VRM

  • LANGuard

  • Overvoltage Protection

  • SafeSlot Core+

  • Stainless-Steel Back I/O

• ASUS Q-Design:

  • Q-DIMM

  • Q-LED Core

  • Q-Slot

• ASUS Thermal Solution:

  • M.2 Heatsink

  • VRM Heatsink Design

• ASUS EZ DIY:

  • ProCool

• Aura Sync:

  • Aura RGB Header

  • Addressable Gen 2 Headers

Software Features

• ASUS Exclusive Software:

  • Armoury Crate

    • Aura Creator

    • Aura Sync

    • Fan Xpert 2+

    • Power Saving

  • AI Suite 3

    • Digi+ VRM

    • PC Cleaner

  • ASUS CPU-Z

  • Norton Deluxe (60 Days Free Trial)

  • WinRAR

• UEFI BIOS:

  • 128 MB Flash ROM, UEFI AMI BIOS

  • ASUS EZ DIY:

    • ASUS CrashFree BIOS 3

    • ASUS EZ Flash 3

    • ASUS UEFI BIOS EZ Mode

Management Features

• Wake-on-LAN by PME: Yes

• PXE Boot: Yes

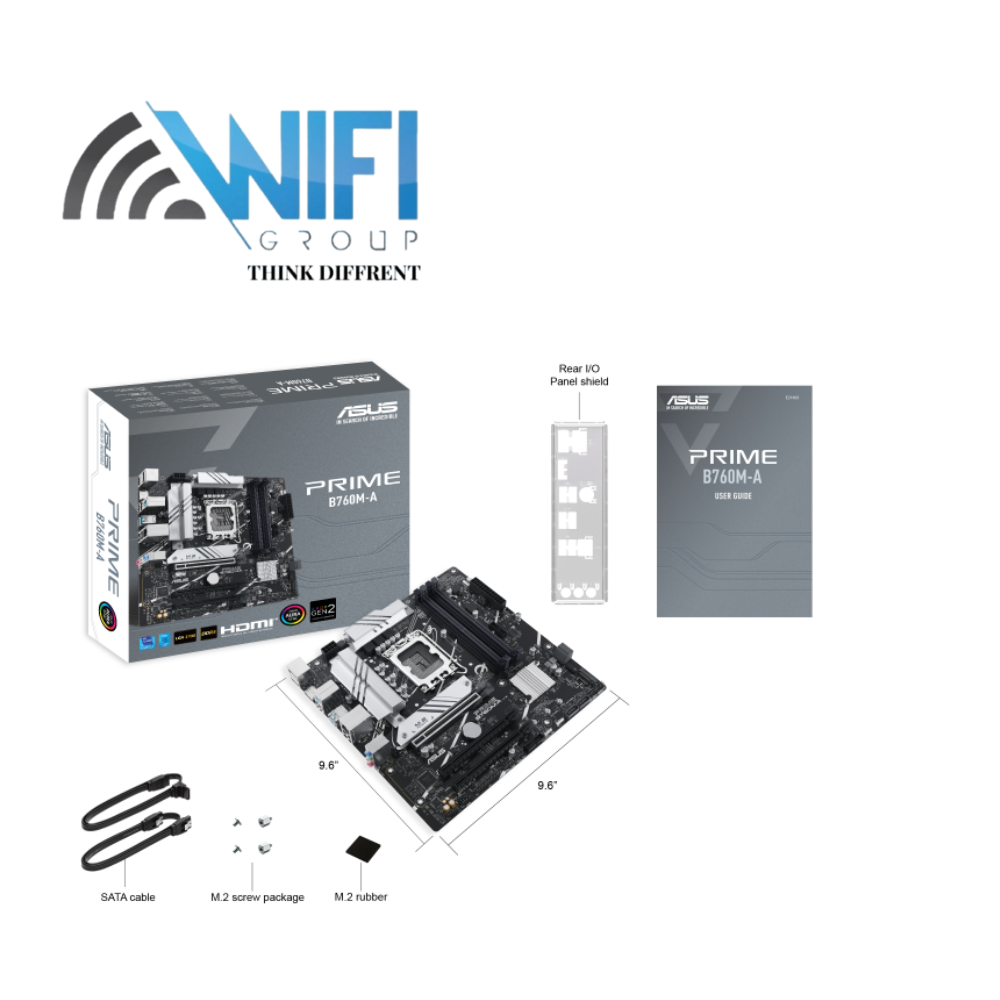

Accessories

• Cables:

  • 2 x SATA 6Gb/s cables

• Miscellaneous:

  • 1 x I/O Shield

  • 1 x M.2 Rubber Package

  • 1 x Screw Package for M.2 SSD

• Documentation:

  • 1 x ACC Express Activation Key Card

  • 1 x User Guide

Operating System Support

• Supported OS: Windows® 11, Windows® 10 64-bit

Form Factor

• Type: mATX

• Dimensions: 9.6" x 9.6" (24.4 cm x 24.4 cm)
